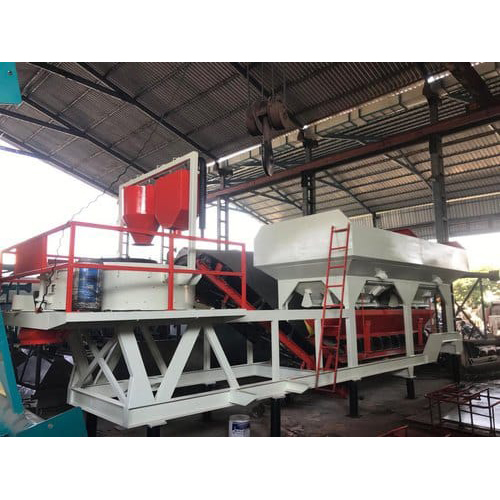

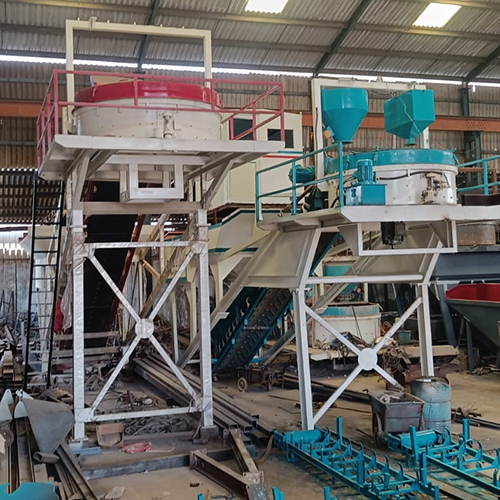

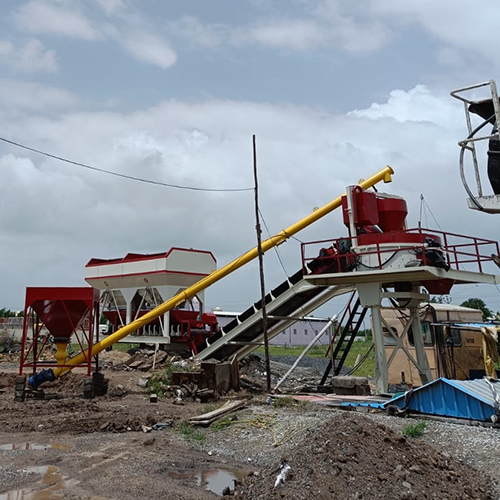

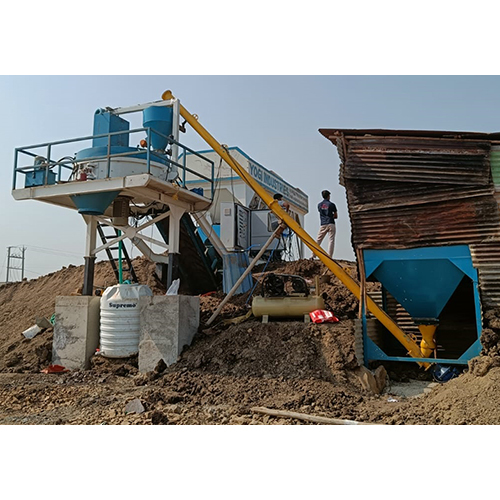

Pump Height Concrete Batching Plant

Name: Pump Height Concrete Batching Plant
Brand: Yogi Industries
Price: 2100000 INR
Availability: InStock

Price 2100000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Pump Height Concrete Batching Plant Specification

General Use
Industrial

Material
Stainless Steel

Type
Concrete Mixing Plant, Mobile Concrete Batching Plant

Automatic
Yes

Control System
HMI Control

Power Source
Electric

Power Consumption
50

Storage Capacity
2.5

Hopper Capacity
2.5

Hopper Quantity
2/4

Conveyor Capacity
1000 kg

Discharging Height
2.5

Voltage
440 Volt (v)

Warranty
1 Years

Pump Height Concrete Batching Plant Trade Information

Minimum Order Quantity
1 Unit

Payment Terms
Letter of Credit (L/C), Cash Against Delivery (CAD), Cheque, Telegraphic Transfer (T/T), Cash in Advance (CID)

Supply Ability
2 Units Per Month

Delivery Time
15 Days

Sample Available
Yes

Main Export Market(s)
Australia, Eastern Europe, Asia, Africa, Central America, North America, South America, Western Europe, Middle East

Main Domestic Market
All India

About Pump Height Concrete Batching Plant

The discharge height for a compact batching plant typically ranges from approximately 1.5 meters to 4.1 meters, depending on the specific model and whether it's designed for pump concreting or loading transit mixers. Mobile plants often have lower discharge heights, while some compact models can achieve higher discharge, with customized options also available.

Factors influencing discharge height:

Type of batching plant:

Mobile plants often have lower discharge heights suitable for pump use, while other compact plants can be higher for transit mixer loading.

Intended use:

A low discharge height (e.g., 1.5m) is ideal for using a concrete pump directly. Higher discharge heights are designed to facilitate loading concrete into a transit mixer.

Manufacturer specifications:

The discharge height is a key specification and varies significantly by model.

Customization:

Some manufacturers allow for customized discharge heights to meet specific project needs.

Sr No.	Detail	YI 20	YI 25	YI 30
1	Concrete Theoretical Output/hour	20 cum	23 cum	30 CUM
2	Aggrigate Storage Bins (2/3 nos.)	Inline	Inline	Compartment type
2	One Bins (sand) Equipped with Vibrators	Type-Bins. 2/4 nos	Type-Bins. 2/4 nos	2/4 NOS.
3	Aggrgate Weighing Equip with 'S' type Load Cell.	4 nos	4 nos	4 nos
4	Charging Hopper	Yes	Yes	Yes
5	Charging Conveyor	Chevron type	Chevron type	Chevron type
6	Mixer Unit	Twin Shaft (0.33 M3)	Twin Shaft (0.40 M3)	Twin Shaft (0.50 M3)
7	Cement Weighing System 'S' type load cell	2 nos	2 nos	3 nos
8	Sand Vibrator	yes	yes	Yes
9	Water Weighing System 'S' Type load cell	1 nos	1 nos	3 nos.
10	Admixer Weighing System 'S' type Load Cell	1 nos (Optional)	1 nos (Optional)	1 nos (Optional)
11	Water Sprinkling/Gravity Discharge	yes	yes	yes
12	Maximum Aggrigate Size	40 mm	40 mm	40 mm
13	Cement Filling Hopper Capacity	1 cum	1 cum	1 cum
14	Cement Screwr Conveyor	Dia 168 x 7 mtrs	Dia 168 x 7 Mtrs	Dia 168 x 7 Mtrs
15	Air Compressor	3 HP	3 HP	3 HP
16	Control System	Automatic PLC	Automatic PLC	Automatic PLC
17	Discharge Hopper	Yes	Yes	Yes
18	Discharge Height	1.2 mtr	1.2 mtr	2.1 mtr
