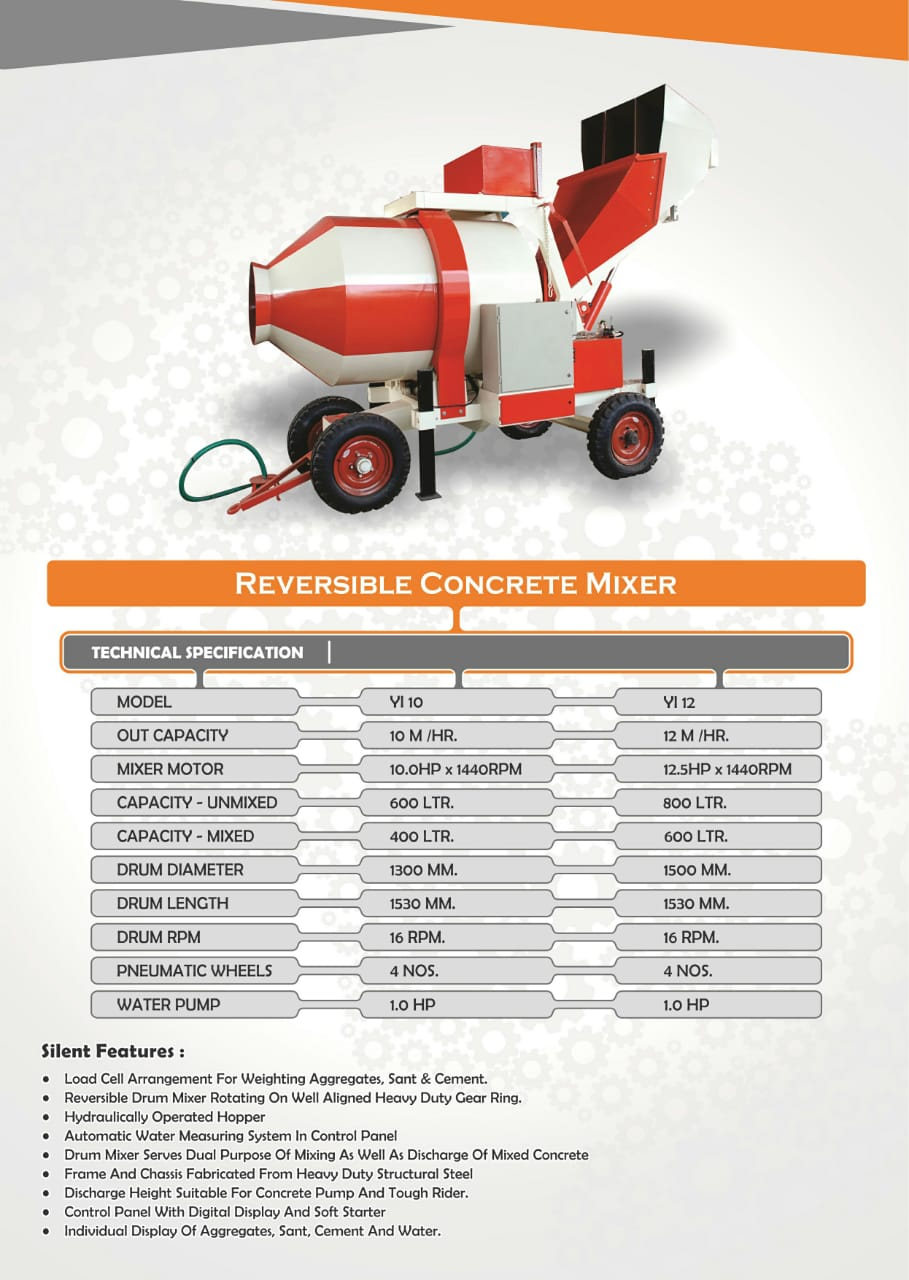

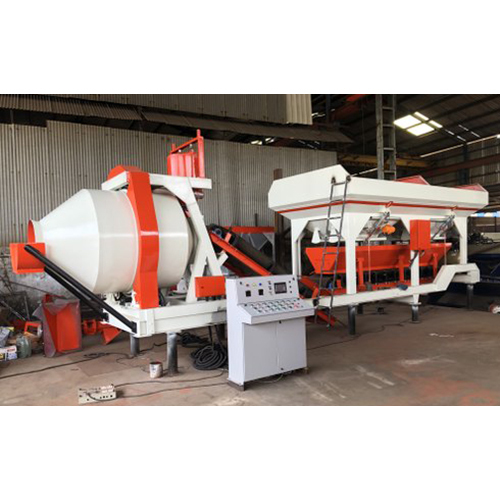

Reversible Batching Plant

Product Details:

• Model YI 10
• Out Capacity 10m3/HR (10m cube/ HR)
• Capacity Unmixed 600 LTR
• Capacity Mixed 400 LTR
• Drum Diameter 1300MM
• Drum Length 1530MM
• Mixing Motor 10HP x 1440Rpm
• Drum RPM 16 RPM
• Pneumatic Wheels 4NOS
• Water Pump 1.0 HP
• Water Tank 160 Liter Capacity

PRODUCT DESCRIPTION

Silent Features:

• Load cell arrangement for weighting aggregates Sand & Cement
• Reversible Drum type Mixer unit rotating on well allied heavy duty gear ring.
• Hydraulically operated Hopper
• Automatic Water Measuring system in control panel.
• Drum mixer serves dual purpose of mixing as well discharge of mixed concrete
• Frame and chassis fabricated from heavy duty structural steel.
• Discharge height suitable for concrete pump and tough rider.
• Control panel with digital display and soft starter
• Individual display of aggregates sand cement and water
• Water tank can also be used as spray chemical in required mixing material.
