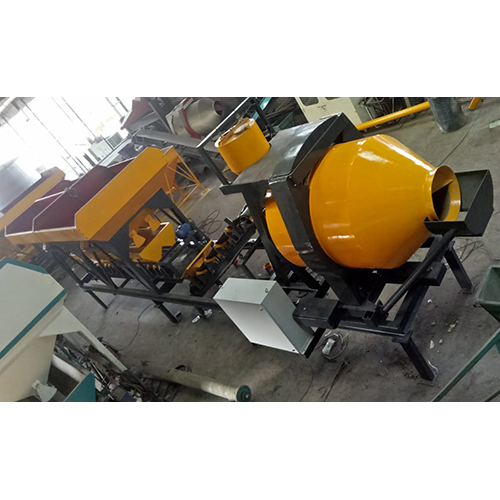

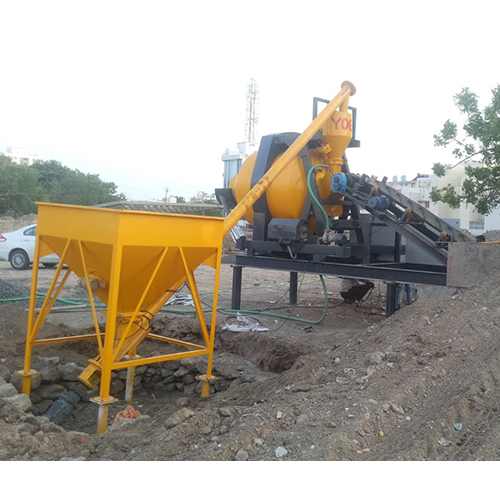

Reversible Concrete Batching Plant

1. Mixing:

Ingredients like cement, aggregates (sand and gravel), and water are precisely measured. The drum rotates in one direction to thoroughly mix these components into concrete.

2. Discharging:

The drum then changes its direction of rotation, effectively turning the process into an unloading mechanism. This reversal allows the mixed concrete to be discharged from the drum.

Benefits

         Efficiency:

The dual-functionality of the reversible drum allows for both mixing and unloading in one machine, reducing the need for separate discharge mechanisms and increasing batching speed.

         Increased Productivity:

Faster mixing and unloading lead to higher output, making these plants suitable for meeting the demands of large or fast-paced construction projects.

         Flexibility:

Many reversible batching plants are designed to be compact or mobile, equipped with wheels and axles for easy relocation to different construction sites.

         Ease of Use:

Automatic or semi-automatic systems with PLC control and HMI (Human-Machine Interface) are often used to ensure accurate and simple operation.

• High efficiency: The dual-direction drum rotation allows for faster mixing and discharge cycles, which increases overall productivity on a job site.
• Consistent quality: The uniform blending of materials produced by the reversible mechanism results in a high-quality, consistent concrete mix.
• Portability and size: Many reversible plants are compact and mobile, built on a heavy-duty chassis with wheels. This makes them ideal for projects that require frequent relocation, such as road construction or other linear projects.
• Cost-effective: The compact design and fewer moving parts lead to lower maintenance and running costs compared to larger, more complex plants. Increased efficiency also reduces fuel and labor costs.
• Low environmental impact: The controlled mixing process reduces material waste. Additionally, some models are more energy-efficient than traditional mixers.
• Ease of operation: Simple controls allow operators to easily switch between mixing and discharge, which minimizes the potential for human error.
